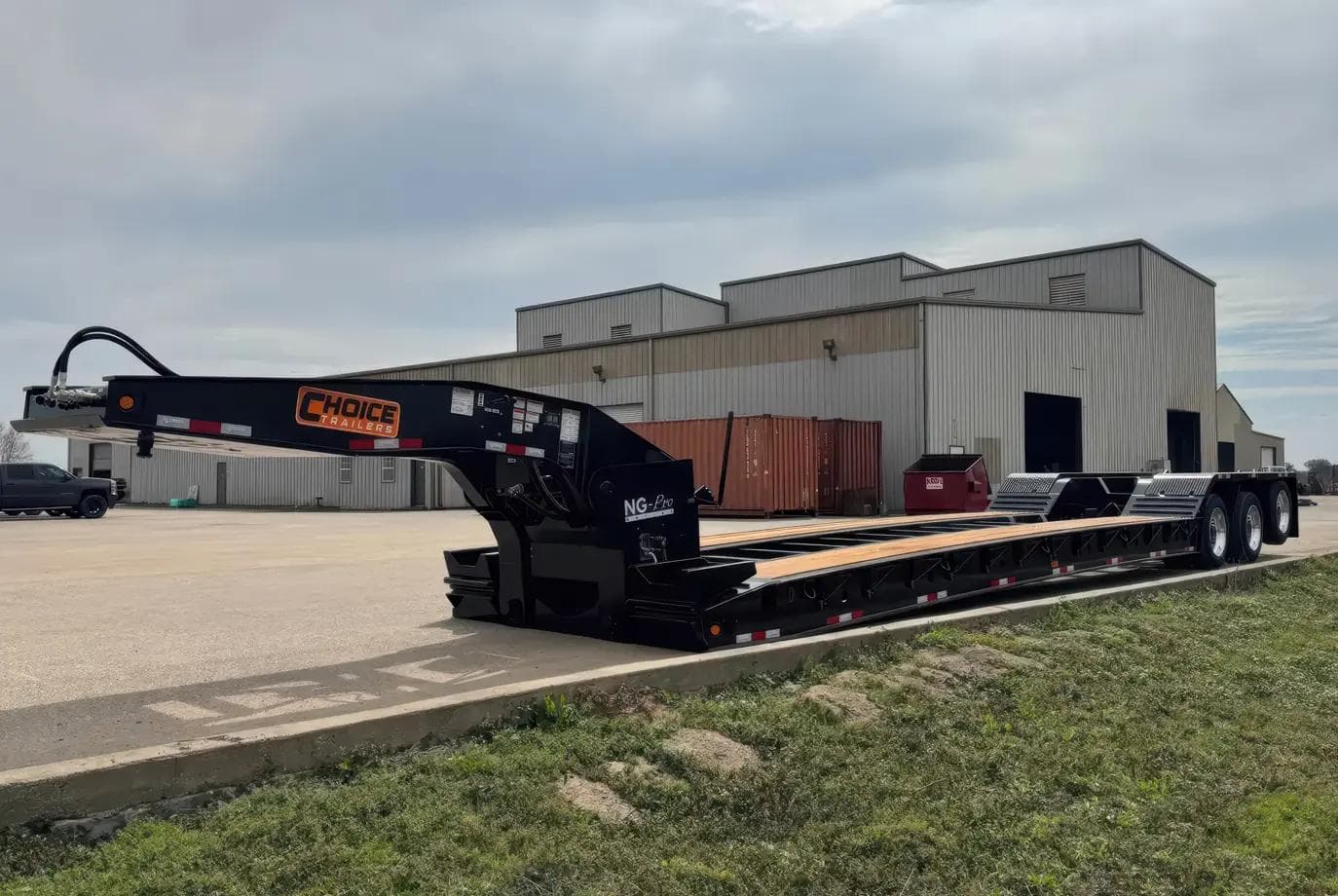

Choice 355NG Dressed – Lowboy, 3-axle, 55-Ton

Choice 355NG Dressed is a 3-axle, 55-ton non-ground bearing lowboy prepped for hydraulic flip.

Key Specs

• Overall Length: 53'
• Overall Width: 102"
• Capacity: 110,000 lbs
• King Pin Settings: 34" & 16"
• Swing Clearances: 108" & 90"
• Deck Length: 26'
• Loaded Deck Height: 22" w/ 6" ground clearance; adjustable

Gooseneck & Hydraulics

• Type: Low-profile scraper, arched, hydraulic detachable, non-ground bearing, air-actuated locking pin
• Hyd. Lift Cylinders: Two, control valve on driver's side
• Hydraulic Power: Runs off wet kit (5–12 GPM)
• Hyd. Neck Support: Yes
• Adjustable Ride Heights: 5 positions

Main Deck & Ramps

• Construction: 4-beam, fully cambered 100 KSI high-tensile T1 steel with expanded metal tool tray
• Decking: Raised Apitong flooring; center deck open standard
• Ramps: Front folding style with traction cleats
• Bucketwell: Recessed cutout rear
• Boomwell: Recessed cutout over axles
• Outriggers: Heavy-duty pull-out & removable 12" swing-type, spaced full length
• Lashing Rings: 1" forged bent, spaced full length
• Flag Holder Slots: One pair front load bed, one pair rear bumper
• Rear Deck: Bolster style, open wheels
• Flip Axle Prep: Reinforced sub-frame; connections included

Suspension & Axles

• Suspension: Air-ride, 25,000 lb capacity, auto/manual ride height control, raise/lower valve
• Axles: 25,000 lb nominal, oil-lubricated hubs, 77.5" track; spacing 55"; lift axle on 3rd axle

Wheels & Tires

• Wheels: Steel disc, hub-piloted, white; outer wheels 8.25×22.5 aluminum polished
• Tires: 255/70R22.5 Load Range H, 16-ply radial
• Brakes: 16½" × 7" drums, 4S2M ABS, auto slack adjusters, 30-30 chambers

Electrical & Lighting

• System: DOT-approved sealed 12 V
• Lights: LED, 3 tail lights per side, mid-turn; 4" amber strobe

Finish & Options

• Paint: Sandblasted, epoxy primer & polyurethane topcoat, black
• Options: 13 HP Honda unit at gooseneck base with dual hydraulics
